GENERAL SPECIFICATIONS Of GRP Tanks
- Standard :
Singapore Standard SS245: 2014, MS 1390: 2010 similar to British Standard BS 7491 Part 3:1994 and BS EN 13280:2001 - Materials :
Sheet Moulding Compound (SMC) consists of :
Resin – Isophthalic unsaturated polyester resin conforming to BS 3532 specification
Fiber Glass – Low alkali fiberglass conforming to JIS R3411 to R3417 or BS 3396, BS 3496, and BS 3749 specifications - Manufacturing Process :
Hot pressed SMC compression molding - Tank Structural Support :
Tie-rod System:
External:
Hot Dipped Galvanized Steel
Internal:
SS304 Tie-rod, Optional SS316
Roof Support: PVC/ABS pipes with GRP roof panel stiffener - External Braced System :
External:
Hot Dipped Galvanized Steel
Internal
None (metal free inside, non-partitioned tank only)
Roof Support: PVC Poles with GRP roof panel stiffener - *Note: Specification may vary according to the client’s requirement.
- Sealant :
Non-toxic PVC foam/EPDM Rubber - Bolt, Nuts, Washers :
External:
– Standard: Hot Dipped Galvanized Steel
– Optional: SS 304/316 - Internal:
– Standard: SS 304 (In-contact with water)
– Optional: SS 316 (In-contact with water) - Roof :
-Standard: Hot Dipped Galvanized Steel
-Optional: SS 304/316 - Ladder :
External:
– Standard: Hot Dipped Galvanised Steel, 300mm width - Internal:
– Standard: PVC or Aluminum, 300mm width
– Optional : GRP or SS 304/316, 300mm width - Water Level Indicator :
Standard: Reversed Reading Mechanical Ball Float Type (Cat & Mouse)
Optional: Direct Reading Clear Tube Type - Nozzle Panel :
Pipe nozzles flange not inclusive
Flat panels will be provided on request

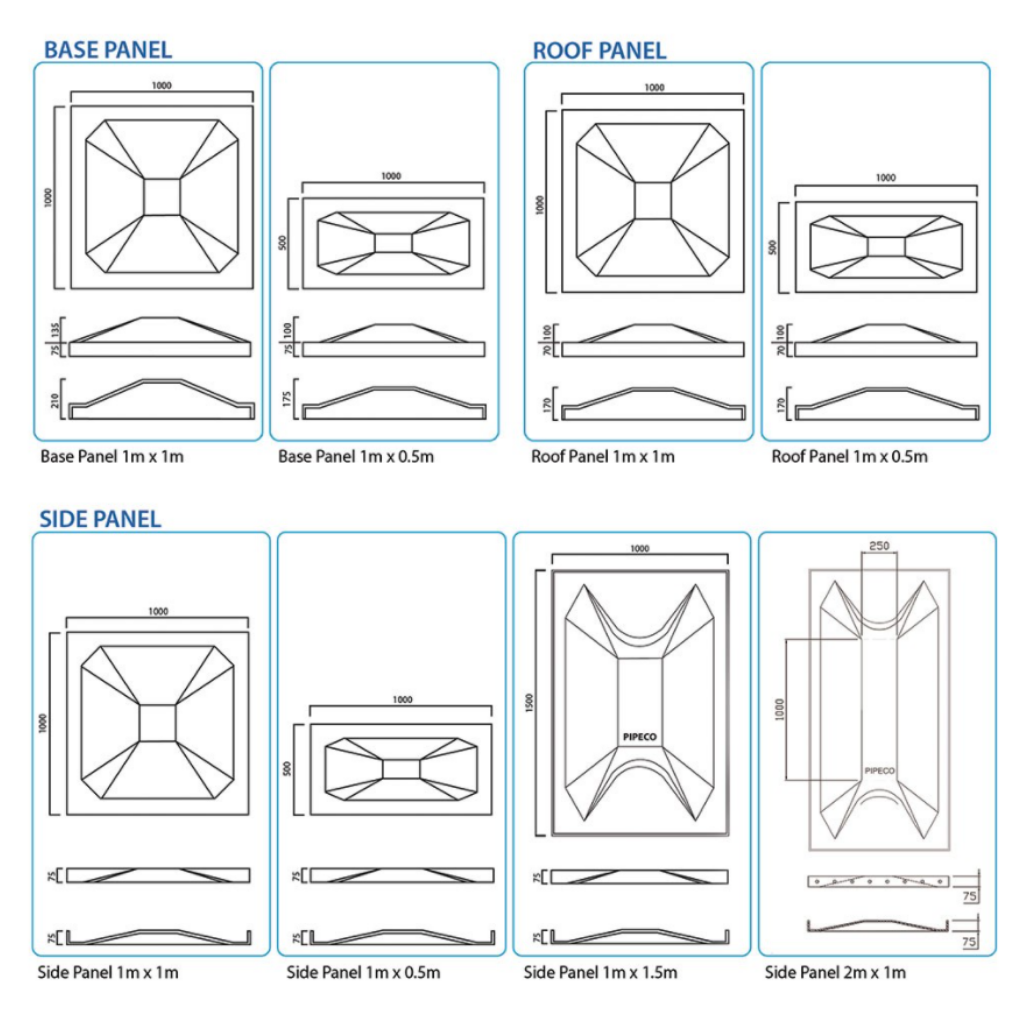

GRP Sectional PANEL DESIGN
By encapsulating a 50mm layer of rigid polyurethane foam, PIPECO pre-insulated panel could maintain the desired water temperature stored inside the tank under extreme temperature condition. PIPECO pre-insulated panel could be selected for water storage where there is a need to stabilize the temperature against extreme heat or freezing conditions so to prevent dew formation.
PERFORMANCE OF GRP PANELS
Characteristics | PIPECO GRP – | Acceptance Criteria |
Tensile Strength (MN/m²) | 107 | >70 (min) |
Bending Strength (MN/m²) | 167 | > 100 (min) |
Elastic Modulus in Bend (MN/m²) | 11953 | > 6000 (min) |
Glass Content (%) | 33 | > 25 (min) |
Barcol Hardness | 59 | >30 (min) |
Water Absorption (%) | 0.2 | 0.5 (max) |
GRP SKID BASE SPECIFICATIONS
*PIPECO reserves the right to provide alternate skid base designs
PIPECO recommends an ideal concrete plinth size of 300mm (W) x 500mm (H), with a maximum variance in height of not more than 2mm
Tank Height | Main Beam | Sub Beam | Concrete Plinth |
1.0m | not provided | not provided | 1000mm c/c |
1.5m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 3mm | 1000mm c/c |
2.0m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 3mm | 1000mm c/c |
2.5m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 3mm | 1000mm c/c |
3.0m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 3mm | 1000mm c/c |
3.5m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 4mm | 1000mm c/c |
4.0m | Hollow Section 50mm x 50mm x 4mm | Hollow Section 50mm x 50mm x 4mm | 1000mm c/c |
INTERNAL TIE-ROD DESIGN
Main Components | External Structural Support | Internal Structural Support | Tank Accessories |
Top Panel | Body Angle | Pole | Access Manhole |
Side Panel | Corner Angle | Pole Support | Air Vent |
Bottom Panel | – | Tie Rod | Water Level Indicator |
Drain/Pit Panel | Flat Bar | Roof Support | Internal Ladder |
Stay Plate | In Corner Bracket | External Ladder |
Overview of Internal Structural Support for GRP Sectional Water Rank
PIPECO GRP sectional water tank is constructed with bottom, side, and top panels complete with external and internal structural reinforcement and necessary tank accessories to facilitate water storage.
EXTERNAL BRACED DESIGN
Main Components | Internal Structural Support | Internal Structural Support | Tank Accessories |
Top Panel | Pole | Flat Bar | Access Manhole |
Side Panel | Pole Support | Body Angle | Internal Ladder |
Bottom Panel | Roof Support | – | External Ladder |
Drain/Pit Panel | In Corner Bracket | C-Channel | Air Vent |
Vertical I Beam | Tube Level Indicator | ||
Roof Flat Bar | |||
Side I Beam Support Bracket | |||
External Bracing Support |
